| 产品特性：AI边缘产品 | 品牌：DFI | 型号：ECX700-ADP |
| 设备类型：工控电脑 |

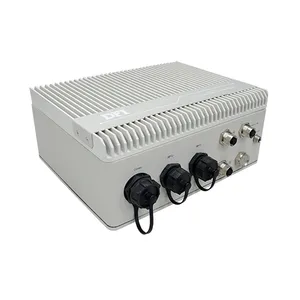

Waterproof and dustproof design certified to IP67 and IP69K
Ruggedized design with vibration/shock resistance and wide operating temperature -20°C to 70°C
12th Gen. Intel® Processor i5-1245UE/ i7-1265UE
Memory support DDR4 8GB memory onboard and one DDR4 SODIMM (up to 32GB)
Rich waterproof I/O including 2x GbE, 4x USB3.2, 1x HDMI, 6x Antenna, 1x Combo port(2 COM & 2 CANBUS) and 1x IP67 Vent
Multiple expansion slots for WiFi/BT, 4G/LTE/5G cellular, NVMe SSD and function modules
Wide voltage: 9V~36V DC-IN
Typically supports 10-Year CPU Life Cycle Until Q1&＃39; 32 (Based on Intel IOTG Roadmap)
系统
处理器
12th Gen Intel® Core™ Processors, BGA 1744 (Alder Lake-P, 15W)
Intel® Core™ i7-1265UE Processor, 10C12T, 12M Cache, 1.7GHz (4.7GHz)
Intel® Core™ i5-1245UE Processor, 10C12T, 12M Cache, 1.5GHz (4.4GHz)
内存
8GB On-board memory & one SO-DIMM DDR4 up to 32GB
Dual Channel DDR4 3200MHz
BIOS
AMI SPI 256Mbit
显示
控制器
Intel® Iris® Xe Graphics eligible
特性
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4, MVC, VP9, WMV9, JPEG/MJPEG
HW Encode: H.264, MPEG4, VP8, H.265, MVC
显示器
1 x HDMI
HDMI: resolution up to 3840x2160@30Hz
储存
M.2 SSD (M Key)
256GB Available(128GB/512GB by project support)
扩充
界面
1 x M.2 3042/3052 B key (PCIe x1 & USB3.0/2.0)(for LTE or 5G module, optional)
1 x M.2 2230 E Key (PCIe x1 & USB2.0)(for Wi-Fi module, optional)
以太网路
控制器
2 x Intel® i225IT (10/100/1000Mbps)
LED
指示灯
1 x Power Status LED

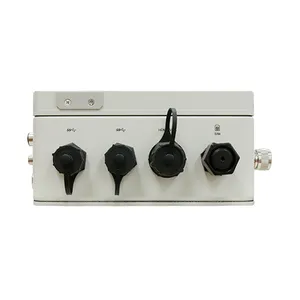

侧面输入/输出
显示器
1 x HDMI
SIM
1 x SIM card slot
USB
2 x USB 3.2

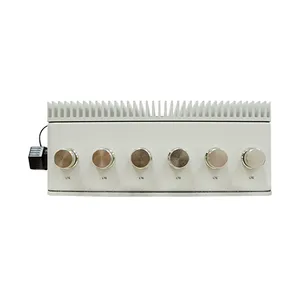

上板输入/输出
天线孔
6 x Antenna (for Wi-Fi, LTE, 5G, optional)

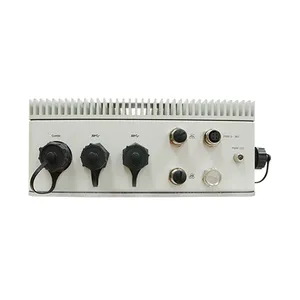

底板输入/输出
以太网络
2 x GbE
USB
2 x USB 3.2
集合连接器
2 x RS232 and 2 x Can bus protocol
电源
1 x 9~36V DC-IN
Vent
1 x Vent
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
电源
类型
DC-in 9~36V
端口
M12 D-code
支持操作系统
微软
Windows 10 IoT Enterprise 64-bit
Windows 11 IoT Enterprise LTSC 2024
Linux
Linux
环境指标
运作温度
-20 to 70°C
储存温度
-40 to 85°C
相对湿度
5 to 95% RH (non-condensing)
机械结构
安装方式
Wall mount
尺寸 (宽 x 高 x 深)
239.24 x 194 x 101 mm
重量
TBD
安规认证
冲击测试
Operation shock test: Half Sine Wave 15G, 11ms, 3 Shock Per Axis
抗振动测试
Operation Vibration test: IEC 60068-2-64
认证
CE, FCC class A, ROHS, UKCA
Construction
IP67/ IP69K enclosure
装箱单
装箱单
· 1 ECX700-ADP system unit
· 1 COMBO cable (for COM & CANBUS)
· 2 LAN cable
· 6 Dust cover (for antenna connector)
· 1 DC input cable
