| 产品特性：AI边缘产品 | 品牌：DFI | 型号：ECX700-ASL |
| 设备类型：工控电脑 |

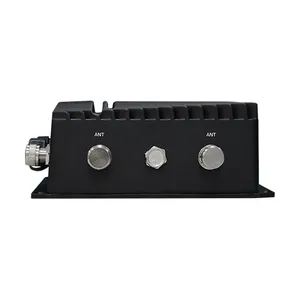

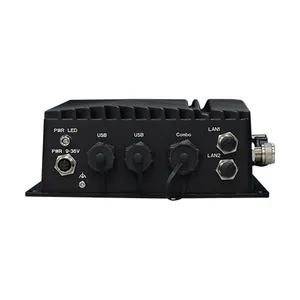

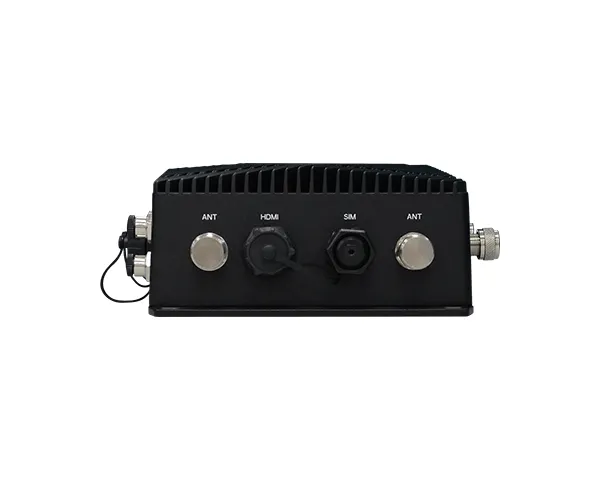

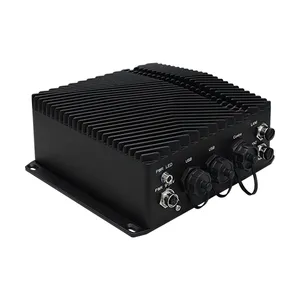

Waterproof and dustproof design certified to IP68 and IP69K
Ruggedized design with vibration/shock resistance and wide operating temperature -40°C to 70°C
Intel® Atom® Processor X7433RE/X7835RE Amston Lake CPU
8GB/16GB LPDDR5 4800 Memory down
Rich waterproof I/O including 2x 2.5GbE, 2x USB 3.2, 1x HDMI, 4x antenna, 1x Combo port, and 1x IP67 vent
Multiple expansion slots for Wifi/BT, 4G/LTE/5G cellular, NVMe SSD and function modules
Wide voltage: 9V~36V DC-IN
Long-term Promise of 15-Year CPU Life Cycle Until Q4&＃39; 31 (Based on Intel IOTG Roadmap)
系统
处理器
Intel® Atom® X7433RE 4 Cores, 1.5GHz to 3.4 GHz
Intel® Atom® X7835RE 8 Cores, 1.3GHz to 3.6GHz
内存
8GB/16GB LPDDR5 4800 Memory down
BIOS
AMI SPI 256Mbit (supports UEFI boot only)
显示
控制器
Intel® UHD Graphics
特性
Execution Units: Up to 32 EUs
3D API: Open GL 4.6, DirectX12, Vulkan 1.2 (Windows) Mesa 3D, OpenGL 4.6, Vulkan 1.2 (Linux)
Precision: FP32, FP16, INT8 Compute: OpenCL 3.0
显示器
1 x HDMI
储存
eMMC
64GB / 128GB Available
扩充
界面
1 x M.2 2230 E key (USB 2.0/PCIe, support CNVi)
1 x M.2 3042/3052 B key: USB3.0/USB2.0/PCIe with SIM
1 x M.2 2242/2280 M key (*PCIe/SATA)
以太网路
控制器
2 x Intel Ethernet controller i226 2.5GbE
LED
指示灯
1 x Power Status LED
前板输入/输出
显示
1 x HDMI
天线
2 x Antenna (WiFi)
SIM
1 x SIM card slot
上板输入/输出
天线连接器
2 x Antenna (LTE)
Vent
1 x Vent
底板输入/输出
以太网络
2 x 2.5GbE
USB
2 x USB 3.2
集合连接器
2 x RS232 and 2 x Can bus protocol
(4 x Can bus protocol by project support)
电源
1 x DC-Input
电源
类型
DC-in 9~36V
端口
M12 D-code
支持操作系统
微软
Windows® 11 IoT Enterprise
Linux
Linux Ubuntu 22.04
环境指标
运作温度
-40 to 70°C with 0.6m/s air flow
储存温度
-40 to 85°C
相对湿度
5 to 95% RH (non-condensing)
机械结构
安装方式
Wall mount
尺寸 (宽 x 高 x 深)
222 X 192 X 88.6mm (with wall-mount bracket)
重量
3 Kg
安规认证
冲击测试
Operation shock test:
IEC-60068-2-27
MIL-STD-810H Method 516.8, Procedure I
抗振动测试
Operation Vibration test:
IEC 60068-2-64
MIL-STD-810H Figure 514.8C-6 Category 4
认证
CE, FCC class A, ROHS
Construction
IP68 (1.5M, 30Min) / IP69K enclosure
