| 产品特性：AI边缘产品 | 品牌：DFI | 型号：RM310-RAP |
| 设备类型：工控电脑 |
Equipped with AMD® Ryzen™ 9000/7000/EPYC 4005 Series and AMD B650 chipset
Supports single-slot GPU/IO card for enhanced graphics and I/O capabilities
Features dual 2.5" swappable drive bays for reliable, high-availability storage
Versatile I/O: 6 USB 3.2, 2 USB 2.0, 2 2.5GbE, 1 RS232, 1 VGA, 1 DP++, 1 HDMI, 1 Line-out, 1 Mic-in
Triple displays: 1 VGA, 1 DP++, 1 HDMI
系统
处理器
AMD® Ryzen™ 9000/7000/EPYC 4005 Series AM5 Socket Processors, TDP support up to 65W
Ryzen™ 7 9700X (8 Cores, 32M Cache, up to 5.5 GHz); 65W (life cycle only to Q1&＃39; 29)
Ryzen™ 5 9600X (6 Cores, 32M Cache, up to 5.4 GHz); 65W (life cycle only to Q1&＃39; 29)
Ryzen™ 9 PRO 7945 (12 Cores, 64M Cache, up to 5.4 GHz); 65W
Ryzen™ 7 PRO 7745 (8 Cores, 32M Cache, up to 5.3 GHz); 65W
Ryzen™ 5 PRO 7645 (6 Cores, 32M Cache, up to 5.1 GHz); 65W
EPYC™ 4545P (16 Cores, 64M Cache, up to 5.4 GHz); 65W
EPYC™ 4465P (12 Cores, 64M Cache, up to 5.4 GHz); 65W
EPYC™ 4345P (8 Cores, 32M Cache, up to 5.5 GHz); 65W
EPYC™ 4245P (6 Cores, 32M Cache, up to 5.4 GHz); 65W
芯片组
AMD B650
内存
Four 288-pin UDIMM up to 128GB (Non-ECC)
Dual Channel DDR5 5200 MHz
*Speed support list follow User’s Manual
BIOS
AMI SPI 256Mbit
显示
显示器
1 x VGA
1 x DP++
1 x HDMI 2.0
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 3840x2160 @ 60Hz
HDMI: resolution up to 4096x2160 @ 60Hz
储存
外插
2 x 2.5" SATA SSD (RAID 0/1/5/10)
内插
1 x M.2 2280 M key
扩充
界面
1 x PCIe x16
1 x M.2 2230 E key
1 x M.2 2242/2260/2280 M key
音讯
音讯编译码器
Realtek ALC888
以太网路
控制器
2 x 2.5GbE (RJ-45)
前板输入/输出
按键
1 x Power Button
LED指示灯
1 x Power LED
1 x HDD LED

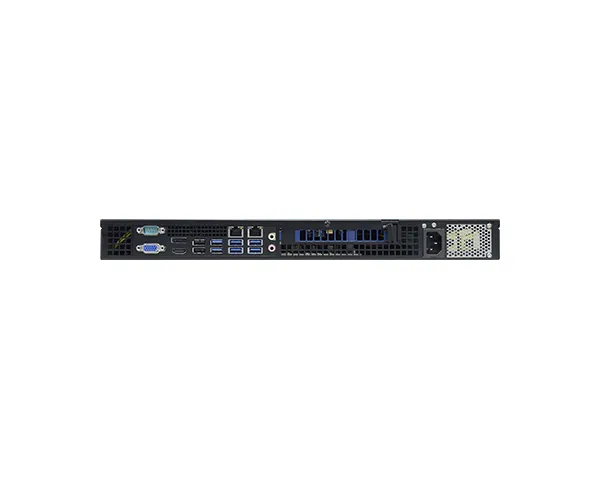

背板输入/输出
以太网络
2 x 2.5GbE
串口
1 x RS232
USB
6 x USB 3.2
2 x USB 2.0
显示
1 x VGA
1 x DP++
1 x HDMI
音源
1 x Line-out
1 x Mic-in
电源
供应
Single/Redundant Power
支持操作系统
微软
Windows 11 Enterprise
环境指标
运作温度
0°C to 40°C: CPU up to TBD W
机械结构
尺寸
431.8(W)x 385(D)x 44(H)
结构
Heavy Industrial Steel
安装方式
Rack mount kit
重量
TBD
颜色
Black
安规认证
认证
TBD
装箱单
装箱单
• 1 RM310-RAP System Unit
