| 产品特性：AI边缘产品 | 品牌：DFI | 型号：WM140-RPS |
| 设备类型：工控电脑 |

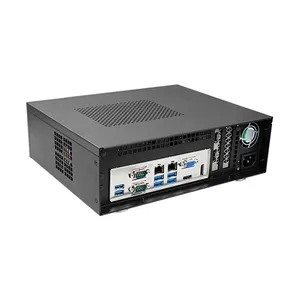

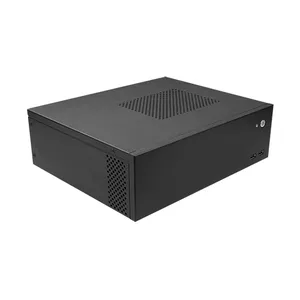

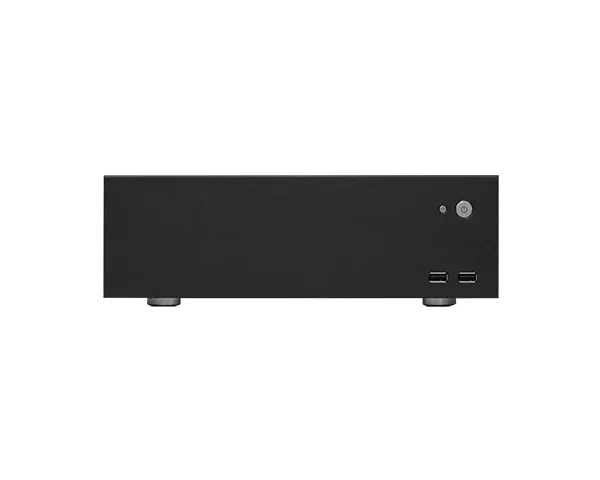

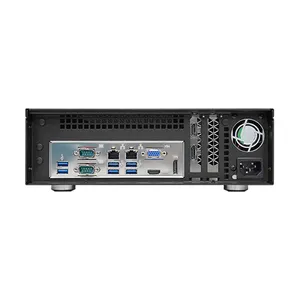

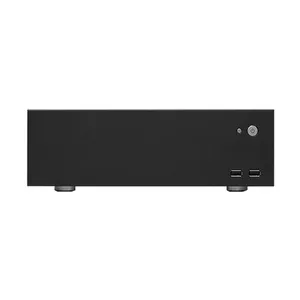

Wall mount system for 14th/13th/12th Generation Intel® Core™ Processors
Compact design for effortless 2U wall-mount deployment
One-Side Rich I/O: 2 Intel 2.5GbE, 2 COM, 6 USB ports
Dual PCIe slot expansion: Dual-slot low-profile GPUs—AI accelerated
Multiple display interfaces: DP++/HDMI/VGA for different scenario
系统
处理器
14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5.0 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W
Intel® 300 (2 Cores,6M Cache, 3.9 GHz); 46W
Intel® 300T (2 Cores, 4M Cache, 3.4 GHz); 35W
13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I9-13900 (24 Cores, 36M Cache, up to 5.6 GHz); 65W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700 (16 Cores, 30M Cache, up to 5.2 GHz); 65W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500 (14 Cores, 24M Cache, up to 4.8 GHz); 65W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13400 (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100 (4 Cores, 12M Cache, up to 4.5 GHz); 65W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W
Intel® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i9-12900(16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.7 GHz); 35W
Intel® Core™ i7-12700 (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i5-12500 (6 Cores, 18M Cache, up to 4.6 GHz); 65W
Intel® Core™ i5-12400 (6 Cores, 18M Cache, up to 4.4 GHz); 65W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Core™ i3-12100 (4 Cores, 12M Cache, up to 4.3 GHz); 60W
Intel® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
芯片组
R680E
Intel® R680E Chipset
Q670E
Intel® Q670E Chipset
H610E
Intel® H610E Chipset
内存
Dual DDR5 SODIMM 5600MHz up to 64GB
R680E
ECC support by R680E sku
BIOS
AMI SPI 256Mbit
显示
控制器
Intel® UHD Graphics 700 series
特性
3D graphics HW acceleration: DX12, Open GL 4.6, Vulkan 1.2
HW Video Decode: 8K60 12b 4:2:0 HEVC/VP9/SCC; 8K30 10b 4:2:0 AV1; 5K60 10b 4:4:4 HEVC/VP9/SCC; 4K60 8b 4:2:0 AVC
HW Video Encode: 8K30 or 5K60 8b/10b 4:2:0 HEVC/VP9/SCC; 4K60 10b 4:4:4 HEVC/VP9/SCC; 4K60 8b 4:2:0 AVC
显示器
1 x HDMI
1 x DP++
1 x VGA
DMI: resolution up to 3840x2160 @ 24Hz
DP++: resolution up to 3840x2160 @ 60Hz
VGA: resolution up to 2048x1536 @ 60Hz
储存
内插
1 x 2.5" SATA 3.0 SSD (Option)
1 x M.2 2280 M Key (PCIe x4/SATA)
扩充
界面
1 x PCIe x16 (Gen 5) (Max. 75W)
1 x M.2 2230 E Key
1 x M.2 3060 A Key
1 x M.2 2280 M Key
音讯
音讯编译码器
Realtek ALC888S
以太网路
控制器
R680E
1 x Intel® I226-LM (Core i9/i7/i5 support iAMT)
1 x Intel® I226-V
Q670E
1 x Intel® I226-LM (Core i9/i7/i5 support iAMT)
1 x Intel® I226-V
H610E
2 x Intel® I226-V
LED
指示灯
1 x Power LED
输入/输出
以太网络
2 x 2.5GbE (RJ-45)
USB
R680E
2 x USB 3.2 Gen2
4 x USB 3.2 Gen1
Q670E
6 x USB 3.2 Gen1
H610E
4 x USB 3.2 Gen1
2 x USB 2.0
屏幕
1 x DP++
1 x HDMI
1 x VGA
按键
1 x Power button
冷却
风扇
1 x 8cm System Fan, with replaceable air filter
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
Nuvoton TPM 2.0
电源
耗能
TBD
供应
FlexATX
支持操作系统
微软
Windows 10 IoT Enterprise 2019
环境指标
运作温度
-5° to 45° C
储存温度
-40 to 85°C
相对湿度
5 to 95% RH (non-condensing)
机械结构
结构
Sheet Metal
安装方式
Wall mount
尺寸 (宽 x 高 x 深)
280 x 87 x 229.9 mm
重量
TBD
颜色
Black
安规认证
冲击测试
Operating: 3G
Non-operating: 5G
抗振动测试
Operating: 1G
Non-operating: 3G
包装落摔测试
ISTA Project 1A
认证
TBD
装箱单
装箱单
• 1 WM140-RPS System Unit(w/o CPU cooler)
