| 产品特性：AI边缘产品 | 品牌：DFI | 型号：ECX700-AL |
| 设备类型：工控电脑 |

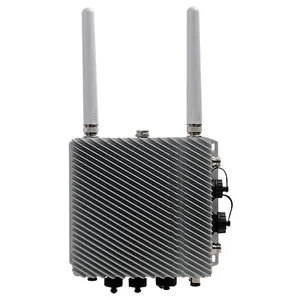

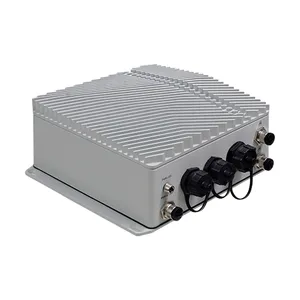

Waterproof and dustproof design certified to IP67 and IP69K
Ruggedized design with vibration/shock resistance and wide operating temperature -40°C to 70°C
Intel® Atom® Processor E3930/E3940/E3950 Apollo Lake CPU
DDR3L memory onboard + 1 SODIMM up to 8GB
Rich securable and waterproof I/Os including 2x GbE, 2x USB 3.0, 1x HDMI, 4x antenna, 1x Combo port, and 1x IP67-rated vent
Up to 3x M.2 slots for for Wifi/BT, 4G /5G cellular, NVMe SSD and function modules
Wide voltage: 9V~36V DC-IN
Long-term Promise of 15-Year CPU Life Cycle Until Q4&＃39; 31 (Based on Intel IOTG Roadmap)
系统
处理器
Intel® Atom® Processor E3900 Series, BGA 1296
Intel® Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
Intel® Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel® Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6W
内存
4GB memory onboard (2GB/8GB by project support)
DDR3L memory onboard + 1 SODIMM up to 8GB
BIOS
AMI SPI 128Mbit (supports UEFI/Legacy mode and Security Boot (optional)
显示
控制器
Intel® HD Graphics
特性
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4, MVC, VP9, WMV9, JPEG/MJPEG
HW Encode: H.264, MPEG4, VP8, H.265, MVC
显示器
1 x HDMI or VGA
VGA: resolution up to 1920 x 1200@60Hz
HDMI: resolution up to 3840x2160@30Hz
储存
eMMC
32GB/64GB Available(8GB/16GB by project support)
扩充
界面
1 x Full-size Mini PCIe for 4G LTE module
1 x Full-size Mini PCIe for Canbus
1 x M.2 2230 (USB2.0/PCIe) for WiFi module
以太网路
控制器
2 x Intel® I210AT PCIe (10/100/1000Mbps)
LED
指示灯
1 x Power Status LED

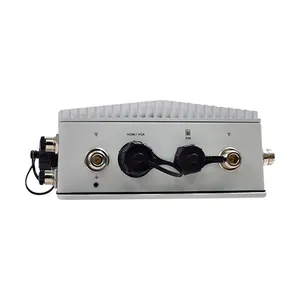

前板输入/输出
显示
1 x HDMI or 1 x VGA (optional)
天线
2 x Antenna (WiFi)
SIM
1 x SIM card slot

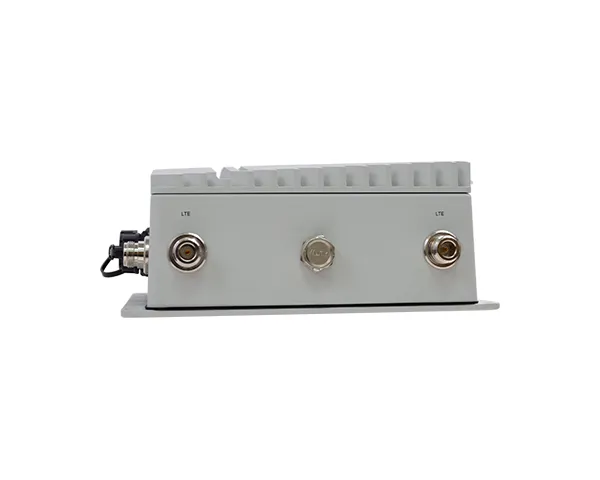

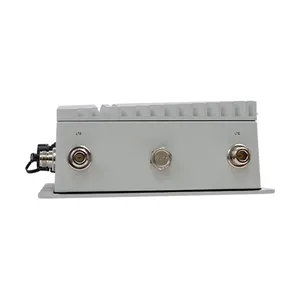

上板输入/输出
Vent
1 x Vent
天线孔
2 x Antenna (LTE)

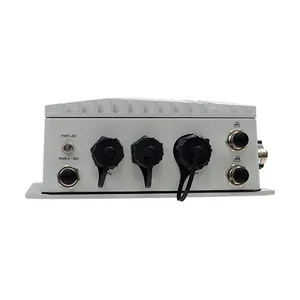

底板输入/输出
以太网络
2 x GbE
USB
2 x USB 3.0
集合连接器
2 x RS232 and 2 x Can bus protocol
电源
1 x 9~36V DC-IN
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
电源
类型
DC-in 9~36V
端口
M12 D-code
支持操作系统
支持操作系统
Windows 10 IoT Enterprise 64-bit
Linux
环境指标
运作温度
-40 to 70°C (E3950, E3940, E3930 only)
储存温度
-40 to 85°C
相对湿度
5 to 95% RH (non-condensing)
机械结构
安装方式
Wall Mount
尺寸 (宽 x 高 x 深)
217 x 188 x 87 mm ( with wall-mount bracket)
重量
4.5 kg
安规认证
冲击测试
Operation shock test: Half Sine Wave 15G, 11ms, 3 Shock Per Axis / IEC60068-2-27
抗振动测试
Operation Vibration test: MIL-STD-810G
认证
CE, FCC class A, ROHS
Construction
IP67/ IP69K enclosure
