• Supports dual Intel® 1st/2nd Xeon® Scalable processors

• Equipped with 12 DDR4 RDIMM slots and up to 384GB

• Flexible expansion options: 4 PCIe x16, 1 PCIe x8, 1 PCI, and 1 M.2 M-Key slot

• Rich I/O : 2 Intel 10GbE, 2 Intel GbE, 2 COM, 8 SATA 3.0, 5 USB 2.0, 6 USB 3.1 Gen1

• Front-accessible storage bays and USB interfaces for easy maintenance and connectivity

• Long-term availability with 15-year CPU lifecycle support through Q3 2033 (per Intel IOTG roadmap)

系统

处理器

1st Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket:
Intel® Xeon® Platinum 8160T (24 Cores, 27.5M Cache, up to 3.7 GHz); 150W
Intel® Xeon® Gold 6138T (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6138 (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6130T (16 Cores, 22M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6130 (16 Cores, 22M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6126T (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6126 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 5120T (14 Cores, 19.25M Cache, up to 3.2 GHz); 105W
Intel® Xeon® Gold 5119T (14 Cores, 19.25M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Gold 5118 (12 Cores, 16.5M Cache, up to 3.2 GHz); 105W
Intel® Xeon® Silver 4116T (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4116 (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4114T (10 Cores, 13.75M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4110 (8 Cores, 11M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4109T (8 Cores, 11M Cache, up to 3.0 GHz); 70W
Intel® Xeon® Bronze 3106 (8 Cores, 11M Cache, 1.7 GHz); 85W

2nd Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket:
Intel® Xeon® Gold 6252N (24 Cores, 35.75M Cache, up to 3.6 GHz); 150W
Intel® Xeon® Gold 6238T (22 Cores, 30.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6230T (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W
Intel® Xeon® Gold 6230N (20 Cores, 27.5M Cache, up to 3.5 GHz); 125W
Intel® Xeon® Gold 6230 (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W
Intel® Xeon® Gold 6226 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 5220T (18 Cores, 24.75M Cache, up to 3.9 GHz); 105W
Intel® Xeon® Gold 5218T (16 Cores, 22M Cache, up to 3.8 GHz); 105W
Intel® Xeon® Gold 5218N (16 Cores, 22M Cache, up to 3.7 GHz); 110W
Intel® Xeon® Gold 5215 (10 Cores, 13.75M Cache, up to 3.4 GHz); 85W
Intel® Xeon® Silver 4216 (16 Cores, 22M Cache, up to 3.2 GHz); 100W
Intel® Xeon® Silver 4215 (8 Cores, 11M Cache, up to 3.5 GHz); 85W
Intel® Xeon® Silver 4214 (12 Cores, 16.5M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Silver 4210 (10 Cores, 13.75M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Silver 4209T (8 Cores, 11M Cache, up to 3.2 GHz); 70W

芯片组

Intel® C622 Chipset

内存

12 x 288-pin RDIMM up to 384GB
Single Channel DDR4 up to 2133/2400/2666/2933 MHZ
(Support Intel DC Persistent Memory)

BIOS

Insyde

显示

控制器

SEM2500

特性

IPMI

显示器

1 x VGA (opt.)

储存

外插

External 2x 5.25” (option change 1x 2.5” by covert bracket)
External 1x 3.5” (option change 1x 2.5” by covert bracket)

内插

1 M.2 M Key2280 (PCIe Gen3 x4 NVMe/SATA)

界面

4 x PCIe x16 (Gen 3)
1 x PCIe x8 (Gen 3)
1 x PCI
1 x BMC Module slot for SEM2500/2510 (IPMI)
1 x 100GbE slot (x4 + x8) for EXT-100GbE proprietary module

音讯

音讯编译码器

ALC888

界面

Onboard Front Audio Pin Header

以太网路

控制器

2 x Intel® I210AT (10/100/1000Mbps)
1 x Intel® x557-AT2 (10GbE)

前板输入/输出

按键

1 x Power Button
1 x Reset Button

LED指示灯

1 x Power LED
1 x HDD LED

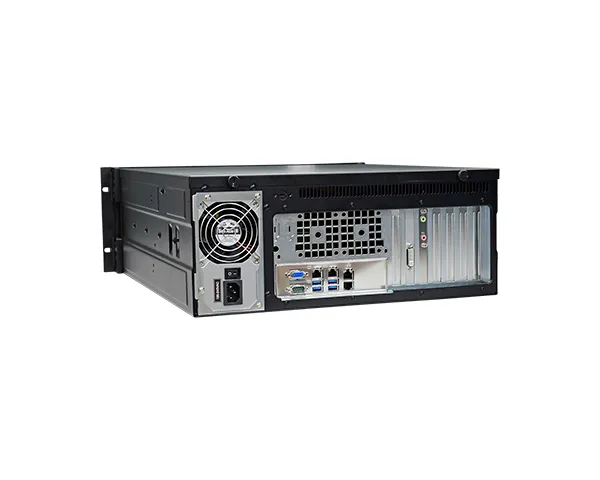

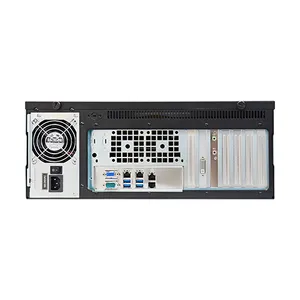

背板输入/输出

以太网络

2 x GbE (RJ-45)
2 x 10 GbE x557-AT2
IPMI 2.0: 1 share w/ i210AT (opt.)

串口

1 x RS-232 (DB-9)

USB

4 x USB 3.1 Gen1
2 x USB 2.0 stack (opt.w/ RJ45+USB2.0 stack)

显示

1 x VGA (opt.)

音源

Onboard Front Audio Pin Header

预断孔

DB-9 x 2

按键

按键

1 x Power Button
1 x Reset Button

冷却

风扇

2 x (90mm = 51.0CFM) Fans

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

Infineon TPM2.0 (opt.)

电源

供应

ATX PS/2 Power Supply 650W

支持操作系统

微软

Windows 10 IoT Enterprise LTSB RS5(64-bit)
Windows Server 2019
Windows Server 2016

Linux

Linux

环境指标

运作温度

0 to 40°C

储存温度

-30 to 60°C with RTC Battery;
-40 to 85°C without RTC Battery

相对湿度

5 to 90% RH (non-condensing)

机械结构

尺寸

483 x 177 x 510 mm

结构

Heavy Industrial Steel

安装方式

Flexible hold down bar

重量

17.9kg

颜色

Black

安规认证

冲击测试

Operating: 3G
Non-operating: 5G

抗振动测试

Operating: random 5~500Hz 1G
Non-operating: sweep sine 10~500Hz 1.5G

包装落摔测试

ISTA Project 1A

认证

CE, FCC class A

装箱单

装箱单

· 1 RM840-PR810 System Unit
· 2 CPU Cooler (LGA3657, 205W)
· 2 SATA Cable (650mm, with Lock)
· 2 System Fan (90mm, 51.0CFM ea)
