| 产品特性：工业级系统 | 品牌：DFI | 型号：WM120-CMS171/CMS173 |
| 设备类型：工控电脑 |

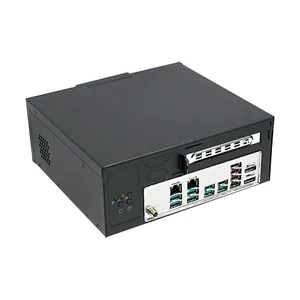

Industrial-grade desktop computer
Rich I/O connectivity: 2 Intel GbE, 8 USB 3.2 Gen2, 4 USB 3.2, 2 DP++
Multiple Expansion: 1 PCIe x16, 1 M.2 M key, 1 M.2 E key, 1 M.2 B key
Support 5G-NR & WiFi 6 module
15-Year CPU Life Cycle Support Until Q2&＃39; 34 (Based on Intel IOTG Roadmap)
系统
处理器
10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors, LGA 1200 Socket
Intel® Core i7-10700E Processor (Core 8; Max speed 4.5GHz; TDP 65W)
Intel® Core i7-10700TE Processor (Core 8; Max speed 4.4GHz; TDP 35W)
Intel® Core i5-10500E Processor (Core 6; Max speed 4.2GHz; TDP 65W)
Intel® Core i5-10500TE Processor (Core 6; Max speed 3.7GHz; TDP 35W)
Intel® Core i3-10100E Processor (Core 4; Max speed 3.8GHz; TDP 65W)
Intel® Core i3-10100TE Processor (Core 4; Max speed 3.6GHz; TDP 35W)
Intel® Pentium G6400E Processor (Core 2; Max speed 3.8GHz; TDP 65W)
Intel® Pentium G6400TE Processor (Core 2; Max speed 3.2GHz; TDP 35W)
Intel® Celeron G5900E Processor (Core 2; Max speed 3.2GHz; TDP 65W)
Intel® Celeron G5900TE Processor (Core 2; Max speed 3.0GHz; TDP 35W)
芯片组
Intel® Q470E Chipset
内存
DDR4 32GB
BIOS
AMI SPI 128Mbit
显示
控制器
Intel® HD Gen 9 Graphics
特性
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
显示器
2 x DP++
DP1.2: resolution up to 4096x2304@60Hz
双重显示
2 x DP++
储存
内插
1 x 2.5" SATA 3.0 1TB SSD
1 x M.2 2280 M Key (PCIe x4/SATA) (support NVMe and Intel® Optane memory)
扩充
界面
1 x PCIe x16 (Gen3 x8signal, Option)
1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi support) for WiFi6
1 x M.2 2280 M key (PCIe x4 Gen3 NVMe/SATA/Intel Optane Memory support) for SSD
1 x M.2 3042/3052 B key (PCIe/USB3.0) for 4G LTE/5G with SIM holder
Note,
65W CPU config. does not support expansion card.
35W CPU config. supports one expansion card via riser card
音讯
音讯编译码器
Realtek ALC888
以太网路
控制器
1 x Intel® I219LM PHY with iAMT12 and vPro (10/100/1000Mbps) (Core i7/i5 supports iAMT)
1 x Intel® I211AT PCIe (10/100/1000Mbps)
LED
指示灯
1 x Power LED
1 x HDD LED

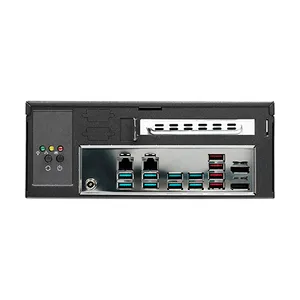

输入/输出
以太网络
2 x GbE (RJ-45)
USB
8 x USB 3.2 Gen2
4 x USB 3.2
屏幕
2 x DP++
按键
1 x Power button
1 x Reset button
冷却
风扇

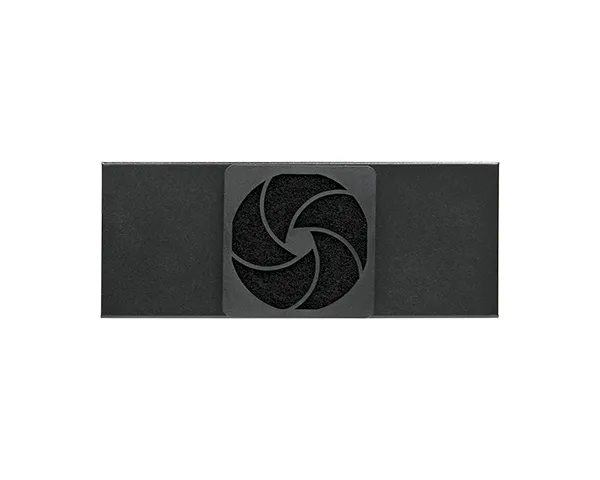

1 x 8cm System Fan, with replaceable air filter
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
Infineon TPM1.2/2.0 (optional)
电源
类型
Lockable DC jack, co-lay with 4pin connector
WM120-CMS171
12VDC in
WM120-CMS173
15V to 36VDC in
端口
DC-in Jack
耗能
Idle: i7-10700E 65W: 19V @ 0.98A (18.62W)
Max: i7-10700E 65W: 19V @ 9.8A (186.2W)
供应
CR2032 Coin Cell
支持操作系统
微软
Windows 10 IoT Enterprise 2019
环境指标
运作温度
-5° to 45° C
储存温度
-30 to 60°C with RTC Battery;
-40 to 85°C without RTC Battery
相对湿度
5 to 95% RH (non-condensing)
机械结构
结构
Sheet Metal
安装方式
Wall mount
尺寸 (宽 x 高 x 深)
224 x 88 x 206mm
重量
2.47kg
颜色
Black
安规认证
冲击测试
Operating: 3G
Non-operating: 5G
抗振动测试
Operating: 1G
Non-operating: 3G
包装落摔测试
ISTA Project 1A
认证
CE, FCC Class A, UL, RoHS (To be applied), UKCA
装箱单
装箱单
1 WM120-CMS System Unit
1 CPU Cooler (65W)
1 SATA data with power cable (7 + 15P) (Length: 220mm)
4 HDD Screws
1 System Fan
