• 10th Generation Intel® Core™ Processors

• Triple independent display : VGA + DP++ + HDMI

• Diverse Storage : 3.5"/2.5" SATA + 5.25" optical drive bay

• Multiple Expansion : 1 PCIe x16, 1 PCIe x4, 2 PCI, 1 M.2 M Key, 1 M.2 E Key

• 15-Year CPU Life Cycle Support Until Q2&＃39; 34

系统

处理器

10th Generation Intel® LGA 1200 Socket Processors, TDP support up to 125W
Intel® Core™ i9-10900E (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ i7-10700E (8 Cores, 16M Cache, up to 4.5 GHz); 65W
Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W
Intel® Core™ i5-10500E (6 Cores, 12M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 3.7 GHz); 35W
Intel® Core™ i3-10100E (4 Cores, 6M Cache, 3.8 GHz); 65W
Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 3.6 GHz); 35W
Intel® Pentium® G6400E (2 Cores, 4M Cache, 3.8 GHz); 58W
Intel® Pentium® G6400TE (2 Cores, 4M Cache, 3.2 GHz); 35W
Intel® Celeron® G5900E (2 Cores, 2M Cache, 3.2 GHz); 58W
Intel® Celeron® G5900TE (2 Cores, 2M Cache, 3.0 GHz); 35W

芯片组

WM343-CMS-Q470E

Intel® Q470E Chipset

WM343-CMS-H420E

Intel® H420E Chipset

内存

WM343-CMS-Q470E

Four 288-pin Non-ECC UDIMM up to 128GB

Dual Channel DDR4 2400/2666/2933MHz

WM343-CMS-H420E

Two 288-pin Non-ECC UDIMM up to 64GB

Dual Channel DDR4 2400/2666/2933MHz

BIOS

AMI SPI 256Mbit

显示

控制器

Intel® HD Gen 9 Graphics

特性

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

显示器

1 x VGA
1 x DP++
1 x HDMI 1.4b
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2160 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz

三重显示

WM343-CMS-Q470E

VGA + DP++ + HDMI

WM343-CMS-H420E

VGA + DP++ / VGA + HDMI / DP++ + HDMI

储存

外插

1 or 2 x 3.5"/2.5" SATA 3.0 drive bays (1 x 3.5" SATA drive bay, by default)
1 x 5.25" Optical drive bay

内插

WM343-CMS-Q470E

1 x M.2 2242/2260/2280 M Key (PCIe Gen3 x4 NVMe/SATA/Intel® Optane Memory and intel RST support)

1 x M.2 2230 E Key (USB 2.0/PCIe)

WM343-CMS-H420E

N/A

界面

1 x PCIe x16 (Gen 3)
1 x PCIe x4 (Gen 3)
2 x PCI

音讯

音讯编译码器

Realtek ALC888

界面

1 x Line-out
1 x Mic-in
1 x Line-in (opt., MOQ required)

以太网路

控制器

WM343-CMS-Q470E

1 x Intel® I211AT PCIe (10/100/1000Mbps)

1 x Intel® I219LM PHY with iAMT12.0 (10/100/1000Mbps)(Core i9/i7/i5 supports iAMT)

WM343-CMS-H420E

1 x Intel® I211AT PCIe (10/100/1000Mbps)

1 x Intel® I219LM PHY (10/100/1000Mbps)

LED

指示灯

1 x Power LED
1 x HDD LED

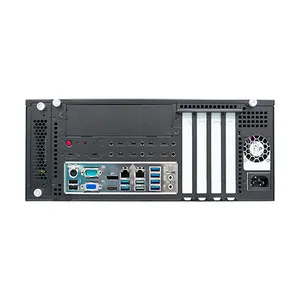

背板输入/输出

以太网络

2 x GbE (RJ-45)

串口

1 x RS-232/422/485 (RS-232 w/ power) (DB-9)

USB

2 x USB 3.2 Gen2
2 x USB 3.2 Gen1 (Up to 6 x USB 3.2 Gen1, MOQ required)
2 x USB 2.0

PS/2

1 x PS/2 (mini-DIN-6)

显示

1 x VGA
1 x DP++
1 x HDMI

音源

1 x Line-out
1 x Mic-in
1 x Line-in (opt., MOQ required)

按键

1 x Power button
1 x Reset button

冷却

风扇

1 x 12cm System Fan

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

Infineon TPM1.2/2.0 (optional)

电源

供应

Flex ATX 150W/250W/350W/400W/500W (250W Default)

支持操作系统

微软

Windows 10

Linux

Linux

环境指标

运作温度

0 to 45°C

储存温度

0 to 50°C

相对湿度

5 to 95% RH (non-condensing)

机械结构

尺寸

349mm x 140.2mm x 290.9mm (13.74" x 5.52" x 11.45")

结构

Sheet metal

安装方式

Wall mount

重量

7.7kg

颜色

no coating or black coating

安规认证

冲击测试

Operating: 3G Non-operating: 5G

抗振动测试

Operating: Random 5~500Hz 0.5G Non-operating: Sine 10~500Hz 1.5G

包装落摔测试

ISTA Project 1A

认证

CE, FCC Class A, RoHS, UKCA

装箱单

装箱单

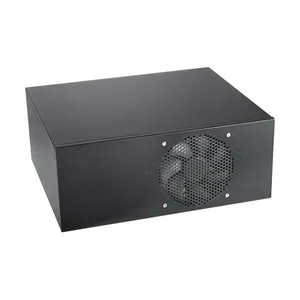

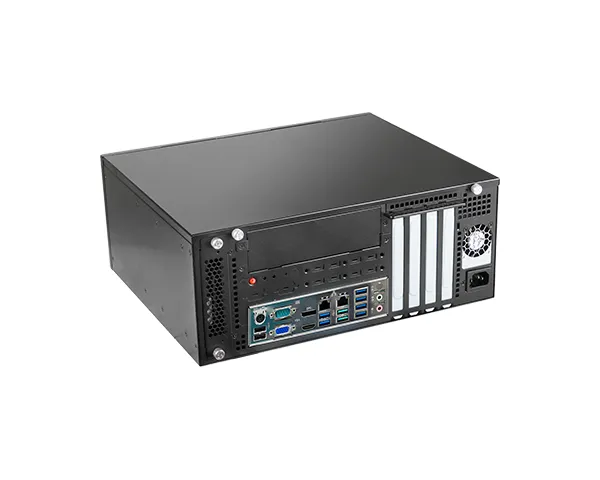

1 WM343-CMS330 System Unit
1 CPU Cooler (65W)
4 HDD Screws
1 System Fan
