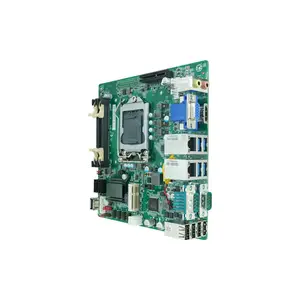

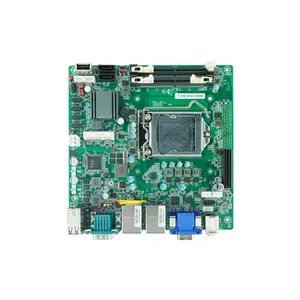

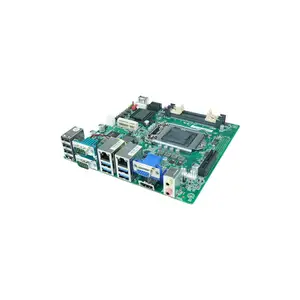

| 产品特性：工业主板 | 品牌：ENNOCONN | 型号：CEB-H31I-D100 |
| 设备类型：工控电脑 |
Intel®8/9代酷睿 i7/i5/i3/奔腾®/赛扬®处理器, 功耗支援到65W
双通道2插槽 DDR4 2400/2666MHz, 64GB
支持VGA, HDMI双屏异显
支持双Intel GbE LAN, USB3.0, 8位GPIO
支持2个SATA3.0
支持2个RS-232/422/485和4个RS232串联端口
海岸线USB端口支援USB SR Pro技术
1个PCIe X4 (X4 link), 1个Mini-PCIe(SATA3.0/PCIe2.0、USB2.0)
| 处理器 Processor | Intel® 8th/9th Gen Core ™ i7/i5/i3/Pentium®/Celeron® Processor, TDP up to 65W |
| 芯片组 Chipset | Intel® H310 |
| 内存 Memory | 2 x DDR4 2400/2666 MHz SO-DIMM Slot, up to 64GB |
| 存储 Storage | 2 x SATA3.0, 1 x MSATA(SATA3.0) |
| 显示 Display | Intel® HD Graphics |
| 网口 Ethernet | 1 x Intel® i219-LM GbE, 1 x Intel® i210-AT (10/100/1000 Mbps) |
| 音频 Audio | Realtek® ALC888S HD Audio codec, supports 5.1-channel |
| BIOS | AMI UEFI BIOS |

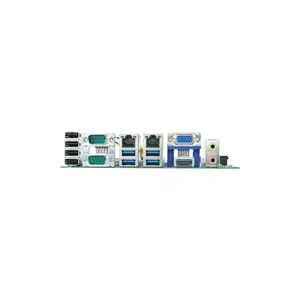

| 外部接口 Rear I/O | 1 x VGA: max resolution up to 1920 x 1200@60Hz 1 x HDMI: max resolution up to 4096 x 2304@24Hz 4 x USB3.0, 4 x USB2.0 2 x RJ45 2 x RS232/422/485 (with auto flow control) 1 x Line-out, Mic-in |
| 内部接口 Internal I/O | 4 x RS232 1 x USB2.0 (1 x Type-A) 1 x 8 bit GPIO 2 x SATA3.0 1 x Speaker out (3W/4ohm) 1 x CPU_FAN 1 x SYS_FAN 1 x FP(power button,power led,reset,HDD led) |
| 扩展接口 Expansion | 1 x PCIe X4 (Gen2, X4 link) 1 x Mini-PCIe (SATA3.0/PCIe2.0、USB2.0) |
| 环境 Environment | 操作温度Operation temp: 0℃ ~60℃ 存储温度Storage temp: -40℃ ~85℃ 操作湿度Operation hum: 5%~90%, 非凝结 Non-condensing 存储湿度Storage hum: 5%~95%, 非凝结 Non-condensing |
| 电源输入 Power Input | 19~24V DC-IN |
| 尺寸 Dimensions | 170 x 170 mm (6.75" x 6.75") |
| 操作系统 OS | Win11 64bit，Windows10, Linux |
| 看门狗 Watchdog Timer | System Reset, Programmable via software from 1 to 255 seconds |
