| 产品特性：工业主板 | 品牌：ENNOCONN | 型号：CEB-H61M-A200 |
| 设备类型：工控电脑 |
支持Intel® 12th/13th//14th Gen Core™ i3/i5/i7/i9, Pentium®, Celeron®,Series 2 高性能处理器
双通道2插槽 DDR5 4000/4400/4800/5600MHz, 96GB
支持HDMI2.0, 2 x DP++,Edp 四屏异显
支持双Intel千兆网口、9 x USB、6 x COM
支持 1 x PCIe X16, 1 x PCIe X8, 1 x PCIe X1 扩展槽
支持 S5状态下USB断电功能
| 处理器 Processor | Intel® 12th/13th/14th Gen Core ™ i3/i5/i7/i9, Pentium®, Celeron®, Series 2 Processor, LGA1700 Socket, TDP up to 65W |
| 芯片组 Chipset | Intel® H610 |
| 内存 Memory | 2 x DDR5 4000/4400/4800/5600(i7&i9)MHz U-DIMM Slot, up to 96GB (up to 64GB with 12/13th CPU) |
| 存储 Storage | 4 x SATA3.0, 1 x M.2 2242/2280 (PCIE Gen3 x1) |
| 显示 Display | Intel® HD Graphics |
| 网口 Ethernet | 1 x Intel® I210AT(10/100/1000 Mbps) 1 x Intel® I219LV GbE (10/100/1000 Mbps) |
| 音频 Audio | Realtek® ALC897(colay with ALC888S) HD Audio codec, supports 5.1-channel |
| BIOS | AMI UEFI BIOS |

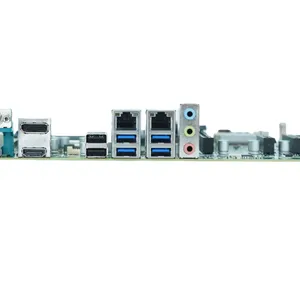

| 外部接口 Rear I/O | 1 x HDMI2.0: max resolution up to 3840x2160@60Hz 2 x DP++: max resolution up to 4096x2304 @ 60Hz 2 x RJ45 4 x USB3.2 Gen1 2 x USB2.0 1 x RS232/4 85 1 x Line-out, 1 x Mic-in, 1 x Line in |
| 内部接口 Internal I/O | 5 x RS232 2 x USB2.0, 1 x USB2.0 (Type-A) 1 x 8 bit GPIO 1 x F_Panel (Power LED, HDD LED, Power button, reset button) 1 x Edp: max resolution up to 4096x2304 @ 60Hz |
| 扩展接口 Expansion | 1 x PCIe x16(Gen5) 1 x PCIe x8 (Gen3) 1 x PCIe x1 (Gen3) |
| 信赖平台模块 TPM | Intel® PTT support (optional Nuvoton TPM2.0） |
| 环境 Environment | 操作温度 Operation Temp.: 0℃ ~ 60℃ 存储温度 Storage Temp.: -40℃ ~ 85℃ 操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing 存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing |
| 电源输入 Power Input | ATX |
| 尺寸 Dimensions | 244 x 244 mm (9.6" x 9.6") |
| 操作系统 OS | 12th/13th/14th Gen CPU : Windows10/11, Linux |
| 看门狗 Watchdog Timer | System Reset, Programmable via software from 1 to 255 seconds |
