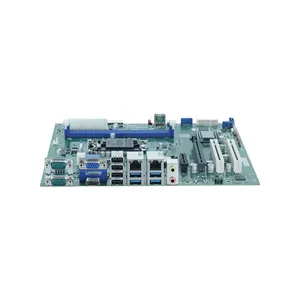

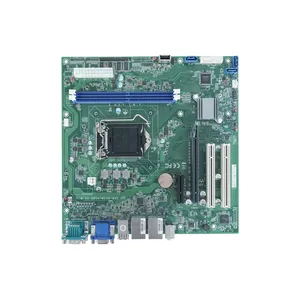

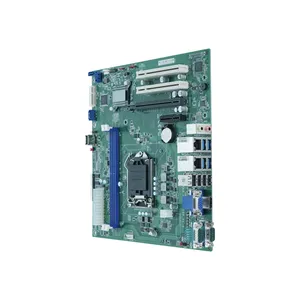

| 产品特性：工业主板 | 品牌：ENNOCONN | 型号：CEB-H11M-A120-L |
| 设备类型：工控电脑 |
支持Intel® 6th/7th Gen. Core™ i3/i5/i7, Pentium®, Celeron®高性能处理器
支持双通道DDR4 2133/1866 DIMM内存插槽, 内存容量可达32GB
支持HDMI, VGA双显
支持Ennoconn USB SR Pro技术
支持双Intel千兆网口、10 x USB、6 x COM(2 x RS232/422/485 with Auto Flow, 4 x RS232)
支持 1 x PCIe X16, 1 x PCIe X4, 2 x PCI 扩展槽
支持 S5状态下USB断电功能
| 处理器 Processor | Intel® 6th/7th Gen. Core ™ i3/i5/i7, Pentium®, Celeron® Processor, LGA1151 Socket, TDP up to 65W |
| 芯片组 Chipset | Intel® H110 |
| 内存 Memory | Dual Channel, 2 x U-DIMM Slot, DDR4 2133/1866MHz, up to 32GB |
| 存储 Storage | 3 x SATA3.0, 1 x mSATA |
| 显示 Display | Intel® HD Graphics |
| 网口 Ethernet | 1 x Intel® I210AT/I211AT GbE (10/100/1000 Mbps) 1 x Intel® I219V GbE (10/100/1000 Mbps) |
| 音频 Audio | Realtek® ALC888S HD Audio codec, supports 5.1-channel |
| BIOS | AMI UEFI BIOS |

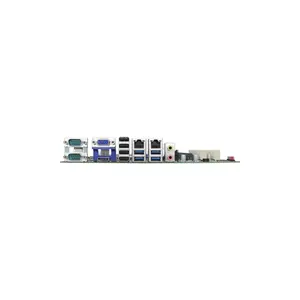

| 外部接口 Rear I/O | 1 x HDMI: max resolution up to 4096 x 2304@24Hz 1 x VGA: max resolution up to 1920 x 1200@60Hz 2 x RJ45 4 x USB2.0 (USB SR Pro supported) , 4 x USB3.0 (USB SR Pro supported) 2 x RS232/422/485 with Auto Flow 1 x Line-out, 1 x Mic-in |
| 内部接口 Internal I/O | 4 x RS232 1 x USB2.0, 1 x USB2.0 (Type-A) 1 x F_Pa nel (Power LED, HDD LED, Power button, reset button) |
| 扩展接口 Expansion | 1 x PCIe X16 1 x PCIe X4 2 x PCI |
| 环境 Environment | 操作温度 Operation Temp.: 0℃ ~ 60℃ 存储温度 Storage Temp.: -40℃ ~ 85℃ 操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing 存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing |
| 电源输入 Power Input | ATX |
| 尺寸 Dimensions | 244 x 244 mm (9.6" x 9.6") |
| 操作系统 OS | 6th Gen CPU : Windows7/8.1/10, Linux 7th Gen CPU : Windows10, Linux |
| 看门狗 Watchdog Timer | System Reset, Programmable via software from 1 to 255 seconds |
