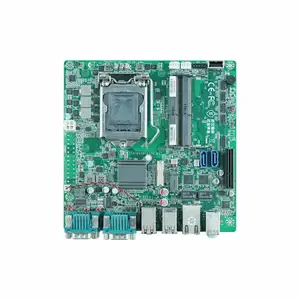

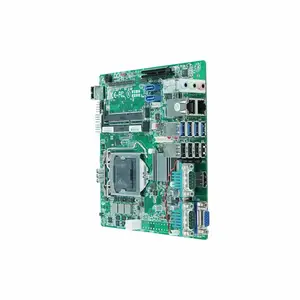

| 产品特性：工业主板 | 品牌：ENNOCONN | 型号：CEB-H11I-D110 |
| 设备类型：工控电脑 |
采用H110芯片组
支持Intel® 6th/7th Gen. CoreTM i3/i5/i7、Pentium®、Celeron® Processor, LGA1151
支持2个DDR4 SO-DIMM内存, 可支持32GB
支持HDMI/VGA双显
支持千兆网口、6 x COM、9 x USB
支持Mini-PCIe、M.2、PCIe X4
支持SIM卡安装
12V DC-IN输入
内置一颗直立USB2.0接口
| 处理器 Processor | Intel® 6th/7th Gen. Core ™ i3/i5/i7, Pentium®, Celeron® Processor, LGA1151 Socket, TDP up to 65W |
| 芯片组 Chipset | Intel® H110 |
| 内存 Memory | Dual Channel, 2 x SO-DIMM Slot, DDR4 1866/2133/2400MHz, up to 32GB |
| 存储 Storage | 2 x SATA3.0, 1 x M.2 2242 (SATA) |
| 显示 Display | Intel® HD Graphics |
| 网口 Ethernet | 2 x RJ45 INTEL WGI210 GbE (10/100/1000 Mbps) |
| 音频 Audio | Realtek® ALC888S HD Audio codec, 1 x Line-in, 1 x Line-out, 1 x Mic-in |
| BIOS | AMI UEFI BIOS |

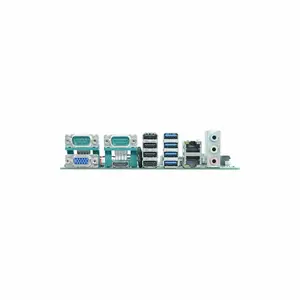

| 外部接口 Rear I/O | 1 x HDMI: max resolution up to 4096 x 2304@24Hz 1 x VGA: max resolution up to 1920 x 1200@60Hz 2 x RJ45 4 x USB2.0, 4 x USB3.0 2 x RS232 1 x Line-in, 1 x Line-out, 1 x Mic-in |
| 内部接口 Internal I/O | 1 x LVDS: max resolution up to 1920 x 1200@60Hz 1 x USB2.0 (Type-A) 1 x 8 bit GPIO 3 x RS232, 1 x RS232/422/485 1 x F_Panel (Power LED, HDD LED, Power button, reset button) 1 x CPU_Fan, 1 x SYS_Fan |
| 扩展接口 Expansion | 1 x Mini-PCIe 1 x PCIe X4 1 x M.2 2242 (SATA) |
| 信赖平台模块 TPM | fTPM2.0 |
| 环境 Environment | 操作温度 Operation Temp.: 0℃ ~ 60℃ 存储温度 Storage Temp.: -40℃ ~ 85℃ 操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing 存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing |
| 电源输入 Power Input | 12V DC-IN |
| 尺寸 Dimensions | Mini-ITX (170 x 170mm) |
| 操作系统 OS | 6th Gen CPU : Windows7/8/10, Linux 7th Gen CPU : Windows10, Linux |
| 看门狗 Watchdog Timer | System Reset, Programmable via software from 1 to 255 seconds |
